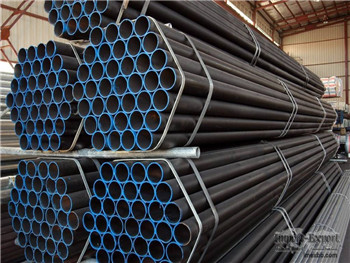

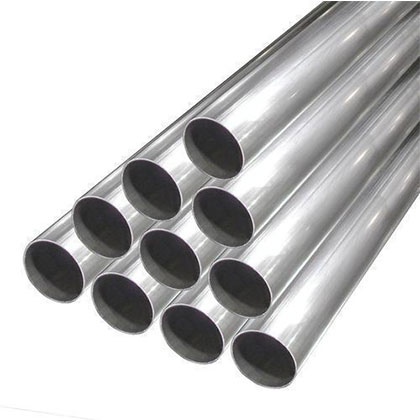

Mild Steel Pipe

Mild steel pipes (MS Pipe) and is one of the low carbon steel pipes with low carbon content and the lesser hardness.Plus a small amount of pearlite microstructure of ferrite is characterized by low hardness (HB 100-130), low intensity (σb 372 ~ 470MPa) and high plasticity (δ 24 percent to 36 percent), and formability and good weldability.


The mechanical properties of mild steel pipe

Mild steel (hot rolled bars) has a apparent yield point, before clear signs of the destruction (large deformation, elongation) is a ductile failure.


Mechanical properties of hard steel pipe

Hard steel (heat treatment of steel and high strength steel wire) is with high strength, but poor plasticity, and brittleness. From the load to suddenly pull off, virtually non-existent yield phase (flow increase). Is a brittle failure.

Cold drawn and hot rolled bars are mild steel. Hard steel and mild steel is according to whether they exist division of the yield point, because hard steel has no significant yield point and plastic compared with mild steel, its control stress factor is lower than mild steel.

Mild Steel (MS) pipes are manufactured using low carbon (less than 0.25%) steel. Due to low carbon content the pipes do not harden and are easy to use. As MS Pipes are made from mild steel they can easily be welded and formed in various shapes and sizes for pipelining and tubing purposes. These are generally used for drinking water supply i.e. Plumbing, Firefighting, HVAC but can also be used in various other Industrial and Engineering applications. These pipes are usually coated with other metals/paints/varnish etc to prevent it from rusting but extra care should be taken to prevent it under extreme conditions.

Standard: BS 1387-1985, ASTM A53, ASTM A513, ASTM A252-98, JIS G3444-2004 STK400/500
G3452-2004, EN 10219, EN 10255-1996, DIN 2440, GB/T13793-2008
Material: Q195, Q235, Q275, Q345
Specification: 1/2”-16” (OD: 21.3mm-660mm)
Wall thickness: 1.0mm-12mm
Surface treatment: Galvanized, oil coating, lacquering
