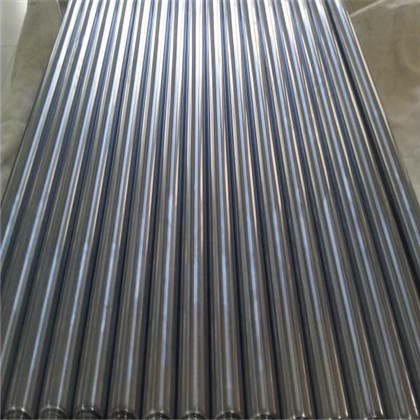

High Strength Hard Chrome Plated Rod Micro Alloy Steel Piston Rod
Product Description
1. The micro alloy steel products are developed on the basis of proprietary technology of the control
rolling and cooling for substituting quenched and tempered piston rods with a variety of mechanical
performance requirements.
2. Micro alloy steel rod mainly used in mechanical manufacturing for the directly turning part of shaft
and rod, ect. For instance, it is used for manufacturing injection molding machine draglink, engineering
machinery push rod and hydraulic prop with the feature that hardened and tempered steel machanical
property needless quenched and tempered process
3. The mechanical property is correspond to quenched and tempered piston rods or over them and
very uniform on the whole cross section.
4. Hardness is more uniform on the whole cross section than quenched and tempered piston rods.
5. Turning performance is commensurate to quenched and tempered piston rods or be superior to them.
6. Micro structure: Ferrite and pearlite with fine and uniform grain size.
7. The processing period is shortened, and the productivity is enhanced and the occupied capital is
reduced.
8. The processing cost is low, there is no need of quenched and tempered process and the second
turning but the mechanical property is correspond to quenched and tempered piston rod.
Detailed Description
1. MATERIAL: HY4700, HY4520
2. CHEMICAL COMPOSITION(%)
| Material | C% | Mn% | Si% | S% | P% | V% | Ni | Cr% | Mo | Cu |
| HY4700 | 0.38-0.45 | 1.20 ~1.60 | 0.30~0.50 | ≤0.035 | ≤0.020 | 0.05～0.15 | ≤0.25 | 0.10～0.20 | ≤0.15 | 0.25 |
| HY4520 | 0.40 ~0.48 | 0.80 ~1.40 | 0.15 ~0.35 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | ≤0.15 | ≤0.25 |
3. MECHANICAL PROPERTIES
| Material | MECHANICAL PROPERTIES | Surface hardness(HBW) | |||||
| Rm(MPa) | Rel(MPa) | A% | Z% | KU2(J) | |||
| HY4700 | Φ35 – Φ100 | 900 – 1100 | ≥650 | ≥16 | ≥35 | ≥39 | 270-340 |
| ＞Φ100 – Φ140 | 850 – 950 | ≥600 | ≥16 | ≥35 | ≥39 | 270-340 | |
| HY4520 | Φ40 – Φ100 | 750 – 900 | ≥520 | ≥19 | ≥40 | ≥39 | 230-290 |
| ＞Φ100～Φ140 | 750 – 900 | ≥520 | ≥17 | ≥35 | ≥39 | 230-290 | |
4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6 .SURFACE HARDNESS
850-1150HV (vickers 100g)
7. TOLERANCES ON DIA
ISO f7 on the diameter
8.OVALITY
Half of the tolerance ISO f7
9. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron
10. STRAIGHTNESS
≤0.2MM/M
11. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10
12.POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
13. WELDABILITY
Good
14. COHESION
No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees
and cooling in water)
15. CERTIFICATE
All certificate related with material heat treatment and plating is required

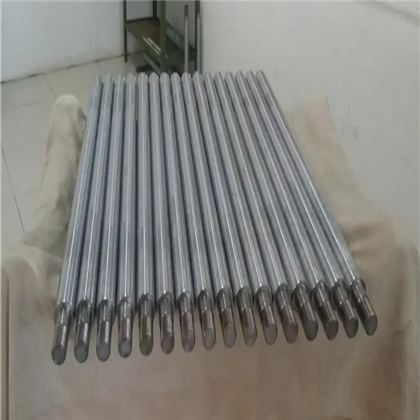

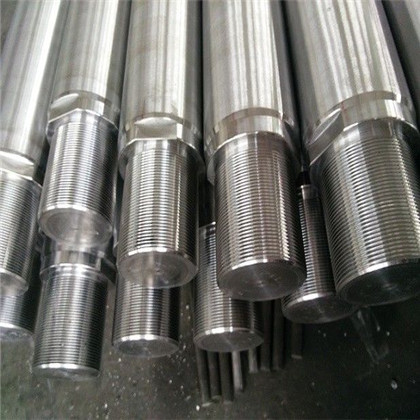

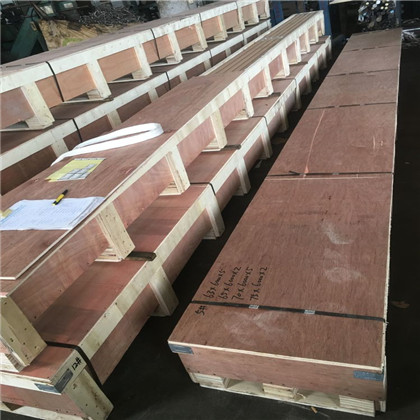

16. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
