National Standards

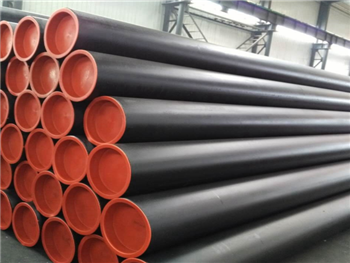

Tube for Conveyance of Fluid
Standard
GB/T8163
Application
It is used for conveyance of petroleum, natural gas and other common fluids.
Main Steel Tube Grade
10, 20, Q345, etc.
Other grades can also be provided after consulting with customers.
Chemical Composition
| Standard | Grade | Chemical Composition % | ||||||
| C | Si | Mn | P, S | Cr | Ni | Cu | ||
| GB/T8163 | 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | |
| Q345 | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤0.045 | / | / | / | |
Mechanical Properties
| Standard | Grade | Mechanical Properties | ||
| Tensile Strength MPa | Yield Strength MPa | Elongation % | ||
| GB/T8163 | 10 | 335-475 | ≥205 | ≥24 |
| 20 | 410-550 | ≥245 | ≥20 | |
| Q345 | 490-665 | ≥325 | ≥21 | |
