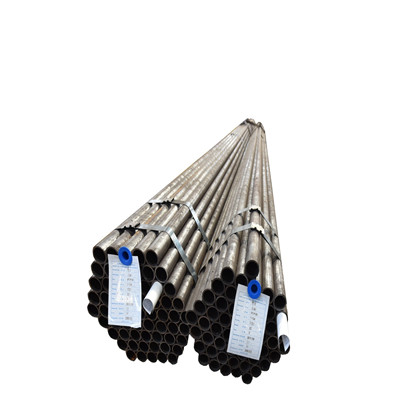

ASTM A213 T9 COLD DRAWN SEAMLESS HIGH PRESSURE BOILER TUBE

Specifications of ASTM A213 T9 Cold Drawn Seamless High Pressure Boiler Tube

Equivalent Standards	EN 10216-2, ASTM A335, GOST 550-75
Material	T9, S50400
Equivalent Material	P9
Type	Seamless
Specialized in	Large Diameter Size
Outer Dimensions	6-2500mm; WT:1-200mm
Wall Thickness	Schedule 3mm to 15mm.
Length	max 1~12m
Schedule	STD, SCH40, SCH80
Tubing End	Plain End, Beveled End, Treaded.
Standard	ASTM A213 T9, SA213 T9 (with IBR Test Certificate)
Sa 213 Gr T9 Specification / Sa213 T9 Specifications	ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3
Size	6.35 mm OD to 610 mm OD
Sch. & Swg.	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk
Thickness	3-60mm
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Craft	Cold rolled and Cold drawn
Type	Seamless / ERW / Welded / Fabricated
available in Form of	Round, Square, Rectangular, Hydraulic Etc.
Length	Single Random, Double Random & Cut Length.
Specialized in	ASME SA213 T9 Boiler Tube, SA213 T9 Heater Tube, SA213 T9 Heat Exchanger Tube
Additional Testing	NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Application	oiler, Heat Exchanger, Superheater and so on.

    T9 Alloy Steel Tube (SA213 T9, Chorme-Moly) is a consistent ferritic Alloy Steel Tube for high temperature administration. These T9 material including SA213 T9 Seamless Tube and Alloy Steel T9 Tube are appropriate for high temperature application, for example, twisting, flanging (vanstoning), and comparative framing activities, and for combination welding in the power business and petro-synthetic plants. SA213 T9 Alloy Steel Tubing is otherwise called ASTM A213 T9 chrome moly tube in view of the concoction cosmetics of Molybdenum (Mo) and Chromium (Cr).   Chemical Composition of ASTM A213 T9 Cold Drawn Seamless High Pressure Boiler Tube

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.15 max	0.30-0.60	0.025 max	0.025 max	0.25-1.00	8.0-10.0	0.90-1.10



Mechanical Properties of ASTM A213 T9 Cold Drawn Seamless High Pressure Boiler Tube



Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	205 min	30 min	179 max

    Our advantages:

• Diverse products(Steel pipes, pipe fittings, other fittings)
• Any third party inspection is accepted by we company.
• Quick response in quotation, delivery, after-service.
• Focus on pipe & tube solution for project application.
