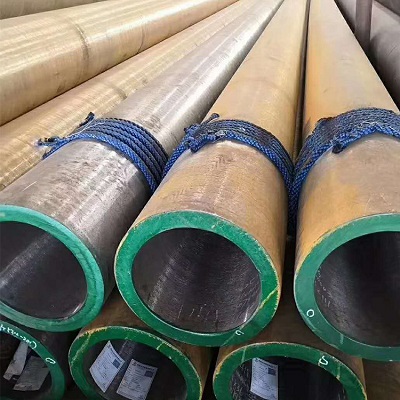

ASME SA335 P12 ALLOY STEEL SEAMLESS PIPE FOR PROFESSIONAL SUPPLIER IN CHINA
Standard:
ASTM A335 P12, SA335 P12 supplied alongwith Mill Test Certificate
Manufacturing Size Range:
1/2~24,24~80 inch
WALL THICKNESS:
2mm TO 100mm
Suitable Pipe Fittings material:
A234 WP12
Schedules:
Sch. 40, Sch.60, Sch. 80, standard wall (STD), extra strong (XS), double extra strong (XXS)
Pipe End Finish:
Beveled end (BE), BBE, BSE, TOE, POE, BLE, BOE, TBE, BOE, PBE
P12 Pipes equivalent specification
ASTM International BSi – British Standards institute Material
A335 Gr. P12 3604/620 1% Chrome 1/2% Moly
ASME SA335 P12 ALLOY STEEL SEAMLESS PIPE FOR PROFESSIONAL SUPPLIER IN CHINA Equivalent
SA335 P12 Pipe equivalent
| ASTM |
ASME |
Equivalent material |
JIS G 3458 |
UNS |
BS |
DIN |
ISO |
ABS |
NK |
LRS |
| A335 P12 |
SA335 P12 |
T12 |
STPA 22 |
K11562 |
3604 P1 620-440 |
17175
13CrMo44 |
– |
ABS 12 |
KSTPA 22 |
Sec 2
1Cr 1/2Mo440 |
|
|
|
|
|
|
|
|
|
|
Sec 3
1Cr 1/2Mo440 |
SA335 P12 material Chemical Composition Chart
| Alloy Steel P12 |
C |
Cr |
Mn |
Mo |
P |
S |
Si |
| 0.05 – 0.15 |
1.00 – 1.50 |
0.30 – 0.60 |
0.44 – 0.65 |
0.025 max |
0.025 max |
0.50 – 1.00 |
Mechanical Behaviour of ASTM A335 P12 Grade Pipe
| Tensile Strength, MPa |
Yield Strength, MPa |
Elongation |
| 415 min |
205 min |
30 min |
Other Available grades with ASTM A335 Gr P12 Pipe
| Tubular Products |
| Alloy Steel Seamless Pipes & Tubes
ASTM A335 Gr P22, Alloy pipe a335 p11, ASTM A335 Gr P5, ASTM A335 Gr P9, ASTM A335 Gr P12 & ASTM A335 Gr P91ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
4130DIN 17175 Seamless Tubes of Heat-resistant Steels
15Mo3; 13CrMo44; 10CrMo910
EN 10216-2 Seamless steel tubes for pressure purposes Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties
16Mo3; 13CrMo4-5; 10CrMo9-10; 11CrMo9-10; X10CrMoVNb9-1
GOST 8732-78 Seamless Hot-worked Steel Pipes
20Ch; 40Ch; 15ChM; 30ChMA
GOST 8734-75 Seamless cold-formed steel pipes
20Ch; 40Ch; 15ChM
GOST 550-75 Seamless steel tubes for petroleum processing and the petrochemical industry
12ChM; 15Ch5M
TU 14-3R-55-2001 Seamless steel pipes for steam boilers and pipelines
12Ch1MF; 12Ch1MF-PV; 15ChM
TU 14-3-460-2003 Seamless steel tubes for boilers and pipelines
12Ch1MF; 12Ch1MF-PV; 15ChM
GOST 9567-75 Precision steel pipes
20Ch; 15ChM
Main material grades:
DIN standard alloy steel tubes15Mo3/13CrMo44, 10 CrMo91016Mo3/13CrMo4-5/, X10 CrMoVNb9-1 |
